The assigment, like the class was in russian, so I hope that what I’m doing right now is actually what the assigment was about. Also, the assigment was a little bit shorter, but taking into account I want to learn something I’ll probably use the lab to add as many concepts from the class that I would not be able to learn otherwise.

Important: Everything (code, plugin, and example) is in this repo.

The assigment

Методом lsb

необходимо встроить двоичную псевдослучайную строку

встроить таким образом, чтобы метрики PSNR и SSIM были валидными
psnr >= 40
SSIM ~1, нормальная метрика 0.95 - 0.97

This means I need to embed a random string into an bmp image, on the rgb/rgba channels, using the lsb embeding method. And using PSNR and SSIM and metrics to grade the quality of the embeding. Which means I should:

1. Uderstand what is a bmp image and how is formatted.
2. A little bit on rgb/rgba, just to have a basic sense of how the messages are being hidden.
3. What is lsb, PSNR, and SSIM.

Additionally, after doing some research I found a really interesting video from black hat asia 2014 on advance steganography wich mentioned stuff like YCbCr color formatting and F5 embeding method. So I’ll add does two to the list of what I’ll try to cover in this ‘not so small assigment’.

Definitions

I want to start with the theoretical part and then with the implementation, for the theoretical part I’ll go:

1. BMP
2. Color encoding models (rgb/rgba and YCbCr)
3. LSB
4. F5
5. PSNR
6. SSIM

A new image format to my toolbelt

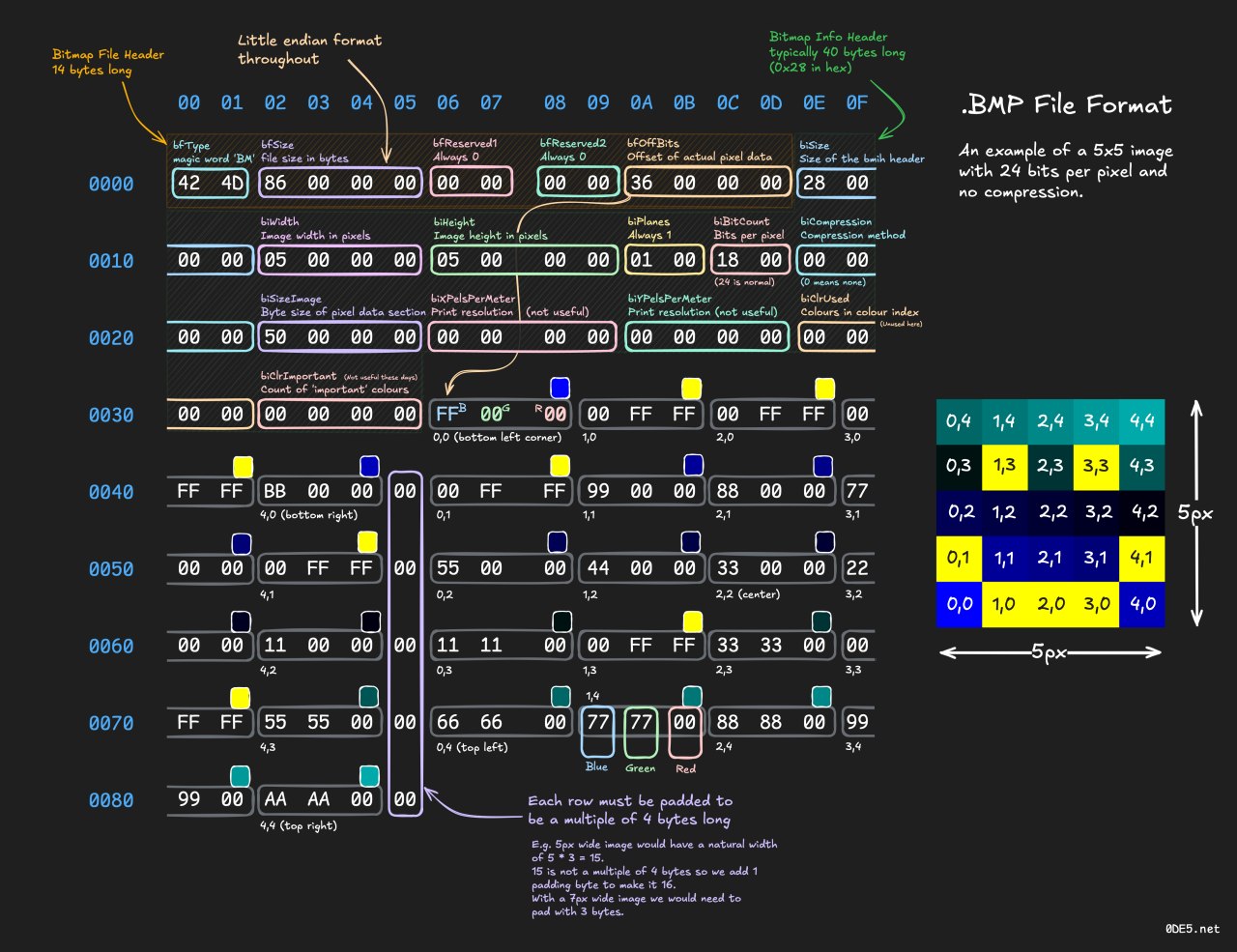

Ok, before any type of oversimplified description of wha BMP images are, pretty pretty please watch the following video on the topic. I’m really amazed how such quality content is so undervalued.

The first important thing worth noticing, is that an BMP file is not only about the pixel information. Rather, it starts with a couple (yes that’s 2) of headers that commonly are commonly 14 and 40 bytes (54 bytes in total). Starting with a file header that is composed by the following properties (padded accordingly to match the previous property):

But common is not what my luck had prepared for me in this exercise. All because, when I was looking at the hex code, I found 7C 00 00 00 as the value for header size; which, in little endian notation is equal to 124 😐. And for does how are not familiar with simple inequalities (like me, for around 30 minutes of debuging before I noticed this part of the hex values) 40 is not equal to 124. And after some research, I was able to find out that the image I was using had a different type of bitmap header (more info here), which gave me something made sense:

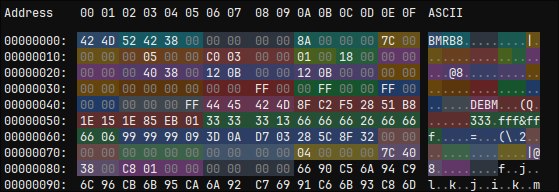

And by decoding the values of the image I’m using for testing:

After doing the math, I found bytes after the 3,686,400 promised on the header; so I did some research and found that in the end there’s something called icc profile which tells the software how to deal with the color values, in such a way that the colors stay consistent between different devices. But I won’t go deeper into this topic just now because is out of the scope of the lab. Maybe it could be use it to hide the stego key, or some metadata regarding the extraction; but for now, let’s just finish here with the formating of the file.

Color encoding models

Before getting into LSB steganography, it helps to understand how pixel colors are actually stored.

RGB and RGBA

The most common color model for digital images is RGB.

Each pixel is represented using three color channels:

• R — Red
• G — Green
• B — Blue

Each channel is usually stored using one byte, which means it can contain a value from 0 to 255.

For example:

R = 255
G = 128
B = 64

In binary:

R = 11111111
G = 10000000
B = 01000000

Some image formats also contain an additional alpha channel:

RGBA

The alpha channel normally represents transparency.

A 24-bit image generally uses:

8 bits Red
8 bits Green
8 bits Blue

Therefore:

8 + 8 + 8 = 24 bits per pixel

A 32-bit RGBA image normally uses:

8 bits Red
8 bits Green
8 bits Blue
8 bits Alpha

BMP channel order

An important detail is that BMP files normally store 24-bit pixel data in BGR order, rather than RGB order.

Conceptually, a pixel may be described as:

RGB = (R, G, B)

but in the BMP file the bytes are normally stored as:

B G R

For example, the RGB pixel:

R = 120
G = 80
B = 200

would normally appear in the BMP pixel array as:

200 80 120

Or actually in hex values as:

C8 50 78

This distinction becomes important when modifying raw BMP bytes directly.

Row padding in BMP

BMP rows must normally have a size that is divisible by 4 bytes.

If the actual pixel data in a row is not divisible by four, extra padding bytes are added.

For a 24-bit BMP:

row_size = width × 3

and the padded row size can be calculated as:

padded_row_size = (row_size + 3) & ~3

which if we visualize in binary:

padded_row_size = (row_size + 00000011) & 11111100

so if for example, row_size=10 first we add 3 (3 is the maximum padding, more than that would be negated by the bitwise AND operation):

  00001010
+ 00000011
----------
  00001101

And then the AND operation:

  00001101
& 11111100
----------
  00001100

Giving a final padded row size of:

padded_row_size = 00001100 = 12

In this image:

width = 1280

so:

1280 × 3 = 3840 bytes

Since 3840 is already divisible by four, this image does not require additional row padding.

However, an implementation should not assume that this will always be the case.

YCbCr

RGB is not the only way of representing color, JPEG images commonly use a model called YCbCr. Instead of representing a pixel directly as red, green and blue, YCbCr separates the image into:

Y  = luminance / brightness

Cb = blue-difference chrominance

Cr = red-difference chrominance

This separation is useful because the human eye is generally more sensitive to changes in brightness than to small changes in color. JPEG compression takes advantage of this property. This becomes especially relevant for steganographic algorithms such as F5, because JPEG steganography does not normally modify raw RGB pixel bytes directly. Instead, information is embedded deeper inside the JPEG compression process. For simple LSB steganography with an uncompressed BMP, however, the RGB/BGR channel bytes themselves can be modified directly.

From color values to bits

Consider one color channel:

R = 154

Its binary representation is:

154 = 10011010

If the value changes from:

10011010

to:

10011011

the numeric value only changes from:

154 → 155

The visual difference between those two channel values is extremely small.

The only bit that changed was the final bit:

1001101[0]
        |
        v
1001101[1]

That means every usable color-channel byte gives us a place where we can potentially store one bit of information, while changing the original channel value by at most 1.

That final bit has a name:

Least Significant Bit (LSB)

The Least Significant Bit, or LSB, is the rightmost bit of a binary number.

For example:

10011010
       ^
       LSB

The LSB contributes only:

2^0 = 1

to the value of the byte.

Because changing it modifies a color-channel value by at most one, it provides a simple way of hiding information inside image pixels, by modifying the LSB of each byte to match the ones and zeros that describe the actual payload.

For example , let’s suppose I wanna hide the word fun. Each character is converted to ASCII:

Which means the whole string to be encoded would be (we would need 24 bytes to hide our message):

01100110 01110101 01101110

So, if we had the following random bytes:

    10110101 01100100 11001010 00110101 11100011 01010100 10011000 01111111
    11010101 00110010 10101000 11110000 01001111 10000100 01101001 11011010
    00111101 10110110 11101000 01010111 10010010 00101100 11111100 01000011

So we would need to do the following replacements:

General, encodying a bit implies apply the 0xFE mask into the target byte, and then apply a logical OR wity the secret bit.

encoded_byte = (original_byte & 0xFE) | secret_bit

Then, restoring the secret message consist on only looking at the final bit of the bytes, or applying the mask 0x01, which keeps only that last bit:

secret_bit = encoded_byte & 0x01

And this works fine in the current assignment; but, we need to think when was the last time someone sent you a bmp file, either by text, email, or IDK… usb sharing? Never? That’s what I thought hehe. Normally we see stuff like PNGs and JPEGs. Which implies some kind of compression, lossless and lossy respectibly. So hidding a message in such low value element, make’s the envelop really fragile, and using a kind of compression would make hard or imposible the task of recovering the message. For this, the method F5 was designed.

F5

F5 is a JPEG steganography algorithm proposed by Andreas Westfeld. The main idea is similar to LSB in the sense that we still want to make very small changes to some values, but the important difference is where those values live. With the BMP example I was directly modifying bytes that represented colors:

pixel -> B G R -> change one bit

With JPEG that is not really the data that finally gets stored in the file. Before being saved, JPEG does a bunch of transformations to the image. Maybe oversimplifying: it starts with RGB wich then is converted into YCbCr, this values are arranged in 8x8 blocks (separately for each channel), then the values of each of the 8x8 blocks would be described as multiple cosine waves by the DCT, then the values are quantized (or removing the high-frequency data), dividing the values by using standard tables defined regarding the type of compression/quality decired. And finally, Huffman encoding, to further compress the data. Returning a nice and well comprssed JPEG image.

Important: F5 works around the quantized DCT coefficients part of that process, rather than changing the final RGB pixels directly.

DCT coefficients

JPEG splits the image into small 8x8 blocks and applies something called the Discrete Cosine Transform, or DCT. Wich takes the 8x8 blocks and represent them as proportions of 64 (also 8x8) different cosine waves. After the DCT, every 8x8 block has 64 coefficients. The first one is normally called the DC coefficient, which represents a big part of the average value of the block. The other 63 are called AC coefficients, which represent progressively more detailed variations. Then JPEG quantizes those coefficients. In other words, it intentionally throws away some precision so the image becomes easier to compress.

So instead of thinking about pixels like:

120 80 200

we can imagine having coefficients like:

-3  5  0  2  -7  1  0  0 ...

Those are much closer to the values F5 actually works with, and most of them tend to be zero. And this is the first important difference with the BMP LSB example:

LSB on BMP -> modify pixel bytes
F5 on JPEG -> modify quantized DCT coefficients

This does not mean that F5 magically survives every possible JPEG recompression. If somebody decodes the JPEG and compresses it again, the DCT coefficients can change again. The point is that F5 embeds the information in the same domain JPEG itself uses while being compressed, instead of pretending a JPEG is just a bunch of stable RGB bytes.

So what does F5 actually change?

F5 mostly uses non-zero AC coefficients as places where information can be hidden. Wich varies between positive coefficients and negative coefficients. While for positive an even value represents 0 as the stego bit and an odd value represents 1 as the stego bit; for negative coefficients, the relationship is inverte, a negative even value represents 1 as the stego bit and a negative odd value represents 0 as the stego bit.

coefficient =  4 -> stego bit 0
coefficient = -4 -> stego bit 1
coefbyte >> (7 - bitIndex % 8)ficient =  5 -> stego bit 1
coefficient = -5 -> stego bit 0

This is done to avoids creating an obvious asymmetry between the positive and negative sides of the coefficient histogram. If F5 needs to flip the hidden value of a coefficient, it decreases its absolute value by one. For example:

 5 -> 4
-5 -> -4

Both changes only move the coefficient one step toward zero.

That gives us another nice similarity with LSB:

• LSB: change a color value by at most 1
• F5: change the absolute value of a DCT coefficient by 1

But there is a small annoying case. Suppose the coefficient is 1 or -1. If F5 needs to modfiy it, it would turn the coefficients into zeros, which the method skips by default. This situation is called shrinkage.

Same result, but cheaper

Up to this point it could sound like F5 is not adding much, just doing something similar but in different channels, by the logic: message bit -> coefficient -> maybe change coefficient. But F5 actually does something way more interesting, wich actully reduce the amount of changes the actual algorithm do to the image, by implementing something defined as matrix encoding.

The easiest example is hiding 2 message bits inside 3 usable coefficient bits, while changing at most one of those three values.

Let’s call the three current steganographic bits:

a1 = 1
a2 = 0
a3 = 1

Instead of saying:

message bit 1 goes into a1
message bit 2 goes into a2

F5 calculates two values from the whole group:

x1 = a1 XOR a3
x2 = a2 XOR a3

With our values:

x1 = 1 XOR 1 = 0
x2 = 0 XOR 1 = 1

So the group:

1 0 1

already represents the hidden message:

01

and we don’t need to change anything. Now imagine we want to hide:

11

Our current calculated value is:

01

Only the first part is wrong. If we flip a1:

before: 1 0 1
after:  0 0 1

then:

x1 = 0 XOR 1 = 1
x2 = 0 XOR 1 = 1

and now the same three positions represent:

11

with only one modification.

The nice part is that for this 3 -> 2 example there are only four possible situations:

The basic idea behind matrix encoding is that 2 secret bits can be stored inside three carrier bits, by only modifying one of the three carrier bits. For the genral case, F5 uses groups with n=2^k - 1 where:

• k is the number of message bits
• n is the number of usable coefficient positions

So for example:

This makes F5 more optimal, because it actually makes harder to detect changes by fully using the information in the image. As the group becomes larger, it can gide multiple bits while still normally changing at moest one coefficient in that group. Obviously there is a tradeoff. Using more coefficients for each chunk of the message lowers the amount of payload that fits in the image. But if the goal is to hide something without modifying the image more than necessary, that’s a pretty nice trade.

Don’t put all the changes in one place

There’s one more important idea in F5 called permutative straddling. Without permutation, if the algorithm simply started embedding from the first available coefficients and continued until the payload was fully embedded, the modifications could look like this:

[X][X][X][X][X][X][ ][ ][ ][ ][ ][ ]

The changes are concentrated near the beginning, which can make the embedding pattern easier to detect. F5 avoids this by generating a pseudo-random permutation from the key. This permutation determines the order in which coefficients are visited. For example:

original positions:
1  2  3  4  5  6  7  8  9  10 11 12

permuted order:
8  2  11 5  1  9  4  12 6  3  10 7

Suppose the payload only needs the first 6 coefficients from that permuted order. F5 would therefore visit:

8 -> 2 -> 11 -> 5 -> 1 -> 9

If we map those selected coefficients back to their original positions, the result looks like this:

positions:
[1][2][3][4][5][6][7][8][9][10][11][12]

selected:
[X][X][ ][ ][X][ ][ ][X][X][  ][ X][  ]

So instead of:

[X][X][X][X][X][X][ ][ ][ ][ ][ ][ ]

we get something more spread out:

[X][X][ ][ ][X][ ][ ][X][X][ ][X][ ]

The important point is that the coefficients themselves are not physically rearranged inside the JPEG. The permutation only changes the order in which F5 visits them. The receiver, using the same key, can generate the same permutation, visit the coefficients in the same order, and recover the hidden message.

And that’s enough F5 theory for what I want from this assignment. As mentioned at the beginning of this post, I’ll follow with a couple of metrics that are used to measure the relationship between the image before and after the mesage is stored.

PSNR

Now that I know how the message is being hidden, I need some way of measuring how different the resulting image is from the original one. The first metric from the assigment is PSNR, or Peak Signal-to-Noise Ratio.

To calculate PSNR we first need another value called MSE, or Mean Squared Error. MSE is basically the average error between the values of the original image and the values of the stego image.

For example, imagine only four values changed like this:

original = [100, 120, 200, 50]
stego    = [101, 120, 199, 50]

The difference between each pair is:

101 - 100 =  1
120 - 120 =  0
199 - 200 = -1
 50 -  50 =  0

If I just added those values, the 1 and -1 would cancel each other, even though two values actually changed. So MSE squares each difference before taking the average:

1²  = 1
0²  = 0
-1² = 1
0²  = 0

Giving:

MSE = (1 + 0 + 1 + 0) / 4
    = 0.5

So a smaller MSE means less difference between both images. If both images are exactly the same, then:

MSE = 0

PSNR takes that error and converts it into a logarithmic value using:

PSNR = 10 * log10(MAX² / MSE)

Where MAX is the largest possible value a channel can have. Since I’m working with 8-bit RGB values:

MAX = 255

Using the previous example:

MSE = 0.5

PSNR = 10 * log10(255² / 0.5)
     ≈ 51.14 dB

Unlike MSE, with PSNR a bigger value means the images are closer.

The assigment specifically asks for PSNR >= 40 so I don’t really need to decide by eye whether the image “looks the same”. I can embed the message, calculate PSNR between the original and stego images, and check if the result is at least 40 dB. This metric also fits pretty nicely with LSB. As explained before, changing one LSB normally means changing a channel value by only 1, and sometimes we don’t need to change it at all because the bit already matches.

For example:

100 -> 101
200 -> 201
57  -> 57
88  -> 89

So even if I hide thousands of bits, each individual modification is still very small. That’s why I would expect the resulting PSNR to stay relatively high.

Important: There’s also one edge case: if both images are completely identical, then MSE = 0, meaning the formula would divide by zero. In that case PSNR is normally considered infinite, which just represents that there is no error between the images.

SSIM

PSNR is useful, but it only cares about the numerical difference between pixel values. It doesn’t really know if the change affected something visually important in the image. That’s where the second metric from the assigment comes in: SSIM, or Structural Similarity Index Measure.

The easiest way I found to think about the difference is:

• PSNR: how much did the pixel values change?
• SSIM: how similar does the structure of the image remain?

SSIM compares small areas of both images and mainly looks at three things:

• luminance: are they similarly bright?
• contrast : is the difference between dark and bright areas similar?
• structure: do the values change in a similar pattern?

For example, imagine this tiny grayscale block:

original:
100 102 104
101 103 105
102 104 106

After modifying some LSBs it could become:

stego:
101 102 105
101 102 105
103 104 107

A few values changed by 1, but the general pattern is almost exactly the same. The values still increase in basically the same direction, the brightness is almost identical, and there is no new edge or weird pattern in the block. So the SSIM should be very close to 1. Now imagine something much more destructive happened:

stego:
100 102 104
101 180 181
102 179 180

This is no longer just a couple of small numeric changes. Now there is a completely different structure in the middle of the block, and SSIM should decrease much more noticeably.

The actual formula is:

SSIM(x,y) = ((2*mu_x*mu_y + C1) * (2*sigma_xy + C2))
            ------------------------------------------------
            ((mu_x² + mu_y² + C1) * (sigma_x² + sigma_y² + C2))

Where, oversimplifying a little bit:

mu       -> average brightness
sigma²   -> variance / contrast
sigma_xy -> how similarly both regions vary
C1, C2   -> small constants to avoid unstable divisions

I’m not planning to calculate that by hand. What actually matters for the lab is how to read the result.

For identical images: SSIM = 1. And as they become less structurally similar, the value moves away from 1. So something like: SSIM = 0.9998 would mean the images are almost identical according to this metric, while SSIM = 0.96 still represents a pretty similar image, but with more noticeable structural differences.

Metric summary

So in the end both metrics are checking the same pair of images, but from slightly different angles:

Implementation

Well, with all of the theoretical part out of the way, let’s get dirty. The original idea was doing something in Rust 🦀; but after finding the BMP Image tutorial that I mentioned on the beginning of this post, I started using this piece of software ImHex, which was amazing to actually annalyze files’ raw data. Because of that, I decided to generate a plugin that contained 11 nodes for the Data Processor view.

In this part of the post, I’ll explain:

1. The general structure of the plugin.
2. Nodes documentation.
3. Experiment with one image results.

General structure

The code is split into three layers, and each layer only talks to the one below it:

1. Entry Point: Is located in the file plugin_stegoooo.cpp. The IMHEX_PLUGIN_SETUP macro is part of ImHex SDK, and is the function the software actually call when it loads the .hexplug file. The only goal of this function is to call one registerXxxxNodes() function per node file.
2. Nodes: Files located under the content/nodes/ folder. Each file defines it’s own node classes, and respective registerXxxxNodes() function that calls ContentRegistry::DataProcessor::add<NodeClass>("Stegoooo", "NAME_OF_THE_SPECIFIC_NODE"). This puts each node in the right place of the right-click menu in the Data Processor view. The headers of the registerXxxxNodes() functions is declared in include/content/nodes.hpp, which is the only header the entry point needs.
3. Helpers: Files located under the content/helpers/ folder. Plain C++ functions that take and return a simple Image struct and byte vectors: decoding, color conversion, LSB, metrics, the BMP encoder, the random strings generator. Non of them have any dependency with the ImHex SKD. The Image struct was created for this plugin, which uses the stb_image library to decodes the BMP into a raw pixel buffer, I don’t want to actually deal with the header stuff (while working the Rust version, this gave me way too much work).

Nodes

In general…

A Data Processor port can only be either a Buffer, an Integer or a Float. Theres no Image type, so images move between blocks as raw byts of the image file, and every block decodes its input with the decodeImage() function. This might generate a little bit overhead while running big structures; but, this is mainly for analisis, so I don’t think this is an actual problem.

The alternative was sending the different channels as individual buffers and the dimensions as integers, but that would give me alot of work while trying to generate the desired layouts.

Because the task was limited to BMP format, the decodeImage() checks the first two bytes for the BM signature and regects any other format; also, I’m defining STBI_ONLY_BMP which forces stb_image to compile it’s BMP reader.

Rendering vs. Processing

By design ImHex calls two method on each block, each on a different thread:

This desing helps the GUI not freeze when a hevy compting task is being processed. The process() function leaves its results in m_pending... variables, protected by a mutex; when done, it sets the m_hasPending flag to true. On the next frame, drawNode() takes the lock, grabs the results, and sets the flag back to false. ImHex also calls a reset() function on every node before each evaluation, but none of my nodes override it: ImHex calls it once per end node, so a node that cleared its display there would end up blank (which is exactly what happened to the RGB node at some point).

Color channel nodes

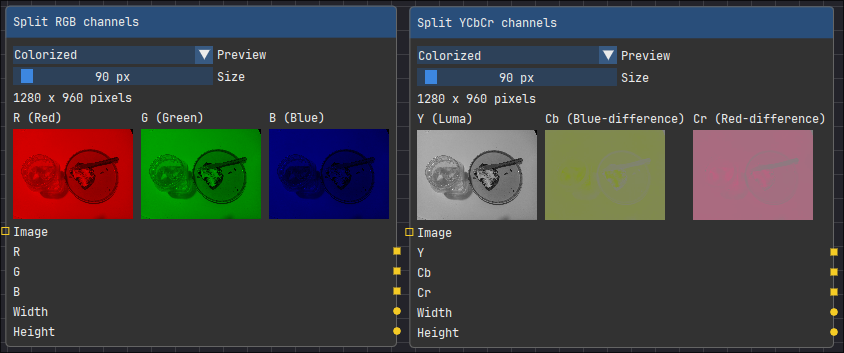

For the Split RGB channels and Split YCbCr channels nodes:

Each one uses ImHex SDK texture function to display separately each of the respective channels, with a slider that can change the size of the display (min 80px and max 400px). This visualization work as native display objects; therefore, by hovering while holding the Shift key, there will be a bigger display of the image.

For the RGB channels, the display is native, it’s just about collecting the information of the whole image by channels:

std::array<std::vector<u8>, 3> channels;

for (auto& channel : channels)
    channel.reserve(image->pixelCount());

for (size_t pixel = 0; pixel < image->pixelCount(); pixel += 1) {
    for (size_t channel = 0; channel < channels.size(); channel += 1)
        channels[channel].push_back(image->rgba[pixel * 4 + channel]);
}

For the YCbCr channels there’s actually some math involved. The conversion happens inside process() (so on the worker thread, not while drawing), using the full-range BT.601 transform, which is the same one JPEG uses:

Y  =  0.299    R + 0.587    G + 0.114    B
Cb = -0.168736 R - 0.331264 G + 0.5      B + 128
Cr =  0.5      R - 0.418688 G - 0.081312 B + 128

The + 128 is there so the chroma channels also fit in a byte, like a base level: 128 means “no color at all”, and anything above or below leans towards blue/yellow (Cb) or red/cyan (Cr).

Both nodes also have a Preview combo with two modes:

Grayscale is the honest view of the numbers, and Colorized just makes it obvious which channel you’re looking at.

LSB nodes

For the LSB hide node:

And for the LSB retrieve node:

The embedding is exactly what I described on the theory part, with a couple of decisions on top:

1. Only the color channels: every pixel gives one bit from R, one from G, and one from B. If the image has an alpha channel, it’s ignored. The BMPs this plugin writes are 24-bit, so anything hidden in the alpha would get lost on save anyway.
2. Initial header: retrieve can’t know by itself where the message ends, so before the actual bytes I hide a 4-byte header with the length of the message (little endian). Without it, retrieve would dump every LSB of the image, and the message would be followed by a lot of noise.
3. MSB first: the bits of each byte are hidden from the most significant to the least significant, so f = 01100110 goes as 0, 1, 1, 0, 0, 1, 1, 0. Retrieve has to walk the pixels in the same order and rebuild the bytes the same way.

for (size_t pixel = 0; bitIndex < payload.size() * 8; pixel += 1) {
    for (size_t channel = 0; channel < 3 && bitIndex < payload.size() * 8; channel += 1) {
        const auto byte = payload[bitIndex / 8];
        const auto bit  = (byte >> (7 - bitIndex % 8)) & 1;   // MSB first
        auto &value = result.rgba[pixel * 4 + channel];
        value = u8((value & 0xFE) | bit);                      // Explained in the theory part
        bitIndex += 1;
    }
}

Since every pixel carries 3 bits and the header takes 4 bytes, the capacity is:

capacity = (width × height × 3) / 8 - 4 bytes

For my 1280 × 960 test image that’s 460,796 bytes, so a 3430-byte random string uses around 0.74% of it, touching only the first 9,158 pixels.

Retrieve also checks that the length it reads makes sense. If you feed it an image that has nothing hidden, the “length” is basically random, usually a huge number. Instead of trying to read past the end of the image, the node throws Stored message length exceeds the image capacity.

The hide node shows the capacity and how much of it is being used, and the retrieve node shows how many bytes it extracted plus a preview of the first 64 characters (non-printable ones are shown as .).

Important: the stego image always comes out as BMP. LSB only works if every single bit survives until retrieval, and BMP stores pixels uncompressed. Save it as JPEG and the message is gone.

F5 nodes

This is where I had to cheat a little bit. The assignment is limited to BMP, and F5 lives inside JPEG files. So instead of reading and writing real JPEGs, the plugin runs the same algorithm over a JPEG-style quantized version of the image, and stores the result as a BMP. All the steps from the theory part are still there; they just never end up in an actual .jpg.

For the F5 hide node:

For the F5 retrieve node:

And both of them share the same three settings, which act as the key (retrieve needs exactly the same ones as hide, or it’ll say No F5 message found):

The pipeline goes like this:

BMP cover -> squash to 16..239 -> YCbCr -> 8x8 DCT -> quantize -> F5 -> rebuild pixels -> stego BMP

1. Squash: every R, G and B value is scaled from 0..255 into 16..239. Quantizing creates small ripples around sharp edges, and when the image is rebuilt, some pixels would end up below 0 or above 255. An 8-bit pixel can’t hold that, so they’d get clipped, and clipping moves the coefficients just enough for retrieve to read the wrong bits.
2. YCbCr, DCT and quantization: exactly as explained in the theory part. 8x8 blocks per channel, the standard JPEG tables (one for Y, one for Cb and Cr) scaled with the quality value.
3. F5: the password gets hashed and used as the seed of a shuffle over all the AC coefficients (the DC ones are never used). Then, walking that order and skipping zeros, the coefficients get modified following the F5 rules.
4. Rebuild: dequantize, inverse DCT, back to RGB, and round everything to 8 bits.

The two F5 rules from the theory part look like this in code:

// positive: odd -> 1, even -> 0. Negative: inverted
int coefficientBit(int coefficient) {
    return coefficient > 0 ? coefficient & 1 : 1 - ((-coefficient) & 1);
}

// the only change F5 ever does: one step towards zero
void decrementMagnitude(int &coefficient) {
    coefficient += coefficient > 0 ? -1 : 1;
}

And the matrix encoding, for each group of n = 2^k - 1 non-zero coefficients:

u32 hash = 0;
for (size_t i = 0; i < group.size(); i += 1) {
    if (coefficientBit(*group[i]) != 0)
        hash ^= u32(i + 1);           // XOR of the positions holding a 1
}

const auto change = hash ^ payload;   // 0 -> the group already says what we want
if (change != 0)
    decrementMagnitude(*group[change - 1]);

If that change turned the coefficient into a 0 (shrinkage), it gets dropped from the group, the next non-zero coefficient is pulled in, and the same bits are embedded again.

A couple of things I had to decide on top of the algorithm:

• Choosing k: bigger k means fewer changes, but it needs more coefficients. The node picks the biggest k where the message still fits; if it runs out of coefficients anyway, it tries again with a smaller k.
• The header: just like LSB, the message goes with its length, plus the k that was used (4 bits). Those are embedded with k = 1, so retrieve can read them before knowing k.
• Checking its own work: even with all of that, rounding still moved a few coefficients on real photos (mostly in smooth areas, where all 64 pixels of a block round in the same direction). So after rebuilding, the node recomputes every block exactly as retrieve would, and fixes the ones that don’t match by trying other ways of rounding the pixels. At the end, it runs the full retrieve over its own output. If the message doesn’t come back exactly, it throws an error instead of handing you a broken image.

The hide node shows some stats after each run: k, the message size in bits, how many coefficients were changed, how many of those were shrinkage, how many blocks needed fixing, and the embedding efficiency (message bits per change). That last one is the whole point of the matrix encoding: it goes up as k grows.

There’s also a third node, JPEG quantize:

It runs the same squash and quantization, but without any message. The reason is that F5 hide quantizes the whole image, so if you compare the stego image against the original BMP with PSNR, you’re mostly measuring the JPEG compression, not the hidden message. Compare it against the output of JPEG quantize (with the same quality) instead, and you get the effect of F5 alone.

Important: this is a teaching version of F5. A BMP whose 8x8 blocks sit perfectly on a JPEG quantization grid is a known giveaway (it’s called JPEG compatibility steganalysis). The real F5 hides inside actual JPEG files, where that pattern is completely normal.

Metric nodes

For the PSNR node:

And for the SSIM node:

Both throw Images must have the same dimensions both the input image dimensions does not match.

PSNR is just the formula from the theory part, calculated over the R, G and B values of every pixel (alpha is ignored, same as LSB):

double psnr(const Image &original, const Image &modified) {
    const auto error = mse(original, modified);
    if (error == 0.0)
        return std::numeric_limits<double>::infinity();   // identical images

    return 10.0 * std::log10(255.0 * 255.0 / error);
}

Important: inside mse(), the differences are calculated as double. If you subtract two u8 values directly, 3 - 4 doesn’t give -1; it wraps around to 255, and the error looks gigantic.

SSIM is a simplified version of the formula from the theory part:

The reference implementation uses 11x11 windows with Gaussian weights, so my numbers can be a little bit different from tools like scikit-image.I was overcomplicating myself when trying to match the actual values.

Save as BMP

For the Save as BMP node:

It re-encodes the image as a plain 24-bit BMP, and has a Save... button that opens a file dialog to write it to disk. The encoder writes the file by hand, which was a nice way of checking everything from the BMP part of this post:

1. The classic headers: 14 bytes of file header plus the 40-byte BITMAPINFOHEADER, so pixels start at offset 54. Remember my test image with the 124-byte V5 header and the ICC profile at the end? The saved file has none of that, just the pixels. Doing the v5 was to complicated and not really part of the scope of the assigment… maybe later I can implement it.
2. Every row is written bottom-up, because a positive height means the first row in the file is the bottom of the image.
3. Every pixel is written as B G R.
4. Every row is padded to a multiple of 4 bytes: (width × 3 + 3) / 4 × 4, which is the same as the (row_size + 3) & ~3 from before.

Random bytes

For the Random bytes node:

This is the one for the assignment’s pseudo-random binary string. The idea was to have something like openssl rand -hex 3430, but using only the C++ standard library. And here’s the thing: the standard library doesn’t have a cryptographic random generator. The closest thing is std::random_device from <random>, and the standard only promises it’s non-deterministic if the platform allows it.

Important: the bytes are generated when the node is created, when the size changes, or when you press Regenerate, never inside process(). ImHex re-runs the graph all the time, so if process() generated the bytes, the message would change on every run, and whatever I hid a second ago would be impossible to recover. The bytes are also saved with the project, so opening it again gives the exact same message.

The 1 MiB limit is because std::random_device gives 4 bytes per call, and each call can go all the way to the kernel. On my machine 1 MiB takes around 0.4 seconds, and 16 MiB took around 7. And 1 MiB is still way more than LSB can hide in a normal image anyway.

Experimenting with Broccoli

First let’s load one of the images in my gallery (I used magick to turn it into a BMP); in ImHex this is done by selecting the read block, with it is relevant to select amount of bytes that should be read and the address from wich the block should start reading. Because the goal is analzsing the whole image, I’ll select the address as 0x00 and with size use the size block to indicate it should read as much bytes as the image has.

After having this initial set of nodes working, is really easy to start completing the designed tasks. For example, I just need to add the random bytes node, and the LSB node, and the metric nodes:

With this workflow I’m showing how by using the LSB method, I’m able to achive both: PSNR >= 40 and SSIM ≈ 1. And by using the LSB Retrieve node, I’m able to recover my original message:

Now, by using the F5 nodes, is important to understand that the capacity of the image is less, which was already explained before in both the node description and in the theoretical part. Because of that, I used a different (smaller) payload; but, a part from that fact, everything behaves the same… just different nodes:

In this case, we can see how the PSNR is way smaller than it’s counterparty that used LSB. This is because one small change in the Luma represents way more changes in the RGB plane. Bu

Important: For the message retrival the properties: quality, password and channels must match with the hidding ones, to be able to extract the message.

Something tells me you are doing LSB

While playing with the ImHex GUI, I was able to find an option to calculate the general byte distribution. And when calculating it for the 3 images (origina, with LSB, and with F5), I was able to find somewthing really interesting about the LSB one. Could you guess which one is which?

Now, where you correct?

The detail that tells F5 is more about the squashing, than the hidden message. You can see it at the lower and higher values, in comparison with the original ones, both ends have a way lower density.

But the one that got my interest was the LSB, with its dents. This happens because LSB replaces neighboring values. For example, values like 100 and 101 only differ in their least significant bit, so embedding data causes pixels to move back and forth between those two values. The same happens with 102 and 103, 104 and 105, and so on. This tends to make each neighboring pair more similar in frequency, while the next pair can still have a different overall count. Repeated across the whole distribution, those small jumps between pairs show up as the characteristic dents in the histogram.

Interesting

After checking the RGB (upper 3) and YCbCr (lower 3) channel splitters, I have a better idea why it’s useful to have the compression being done in YCbCr. As it can be seen in the following image, the added density of the 3 channels on top (RGB) is way more than the addition of the lower 3 (YCbCr), meaning that there’s way less information being used to describe something that at the human vision level is the same as the one with higher density.
